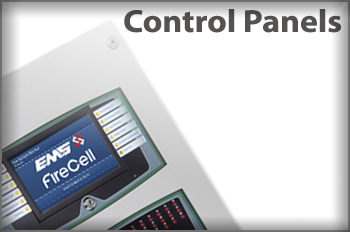

FireCell Control Panels
The range of control panels for FireCell is comprehensive in both size and features. From a single loop, with a few devices, up to a multi-panel network across a number of buildings, FireCell is fully scalable, whatever the application. All FireCell control panels feature wireless ready software ensuring easy and intuitive installation and commissioning.
All FireCell panels are 3rd party tested and meet both EN54-2 and EN54-4
Taktis, for FireCell, is the latest in fire control panel technology which provides many more features and benefits for both installer and end user alike. Using some of the most recent innovations, including a full colour 80 character 800×600 pixel touch screen, Taktis is expandable and scalable and can be customised to meet the demands of every building and is fully networkable for larger estates. (For full details on network capabilities please contact Ray Puttock in Marketing)
FireCell wireless and wired devices can be seamlessly installed for either a totally wire-free or hybrid solution dependant on the demands and the risk. Taktis has been designed to make additions and expansion simple with a range of plug in boards.
• Device capacity can be upgraded from 2 to 8 loops, to accommodate 126 FireCell wireless devices or hardwired devices per loop
• Networkable (data) up to 128 panels
•Wireless networking also available for up to 16 panels
• 7 inch 800 x 600 pixel colour touch screen
•Up to 24 user specific actions assigned to on screen function buttons
• Up to 10,000 event log with filtering stored in secure memory – retained even when power is removed
• Up to 5,000 cause and effect entries
• Up to 20,000, inputs controlling 20,000 outputs across a network
• Printer option
From a single loop AS Lite with 16 zones the AS range is available in a number of configurations.
The AS CIE can be networked with the addition of an optional network card (not AS lite) so is ideal for many applications, either as a fully wireless solution or a hybrid using a combination of wireless and wired devices.
• Wireless or wired FireCell devices
• Networkable (data) (excludes AS Lite) up to 64 panels and in excess of 16,000 FireCell devices (wireless & wired)
• Wireless network available up to 16 panels
• Up to 16 zones
• Up to 500 event log
• Cause & effect wizard
